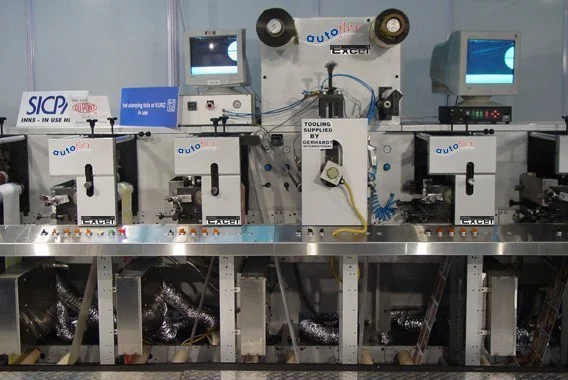

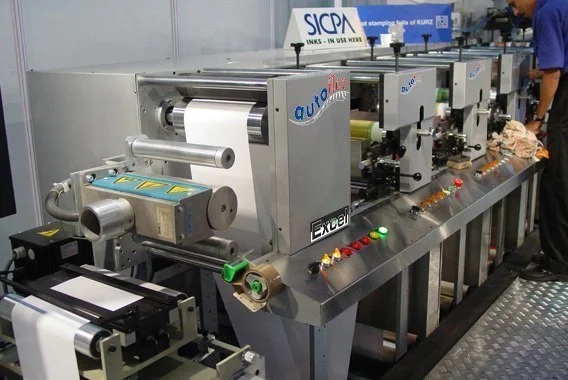

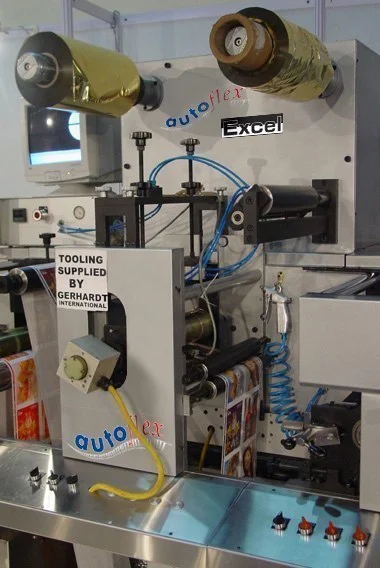

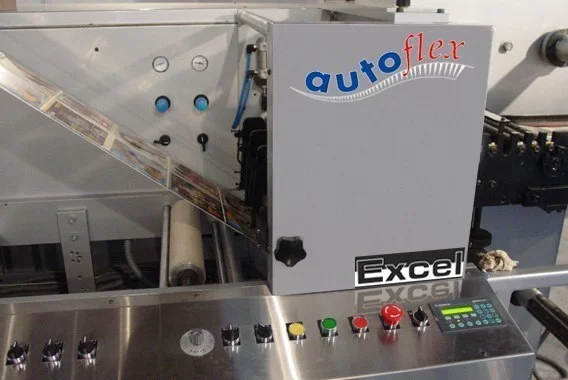

Autoflex Excel

Specifications

  • Speed up to 500fpm (137m/min) (depending on material)
  • All steel heavy duty construction
  • Stainless steel front covers
  • 360 degree gearbox with motorised register
  • Helical gear drive
  • Laser engraved ceramic anilox rollers
  • Automatic plate cylinder & anilox throw-off
  • Reverse angled doctor blade assembly
  • Digital close loop tension control
  • Infrared dryers with high velocity hot air
  • Electronic ultrasonic web guide
  • Two die cutting stations
  • Predetermined programmable counter
  • Fully hardened and removable base rolls
  • Hard chrome impression and anvil rollers
  • Dual rewind with 3" pneumatic air shafts
  • Pneumatic roll lifter
  • Variable infeed unit
  • Outfeed nip roll after last print station
  • Outfeed nip roll before last die station
  • Splice table with pneumatic holder
  • Splice tape holder
  • Quick cassette change system for Anilox and Metering Roller (although system designed to run without Metering Roller)
  • Venturi waste extraction system

Optional Extras

  • Turnbar - Male/female hole punching
  • Hot/cold laminating
  • Ink circulation pumps
  • U.V. curing system
  • Fan folder
  • Sheeter/stacker conveyor
  • Video plate mounter
  • Rotary letterpress numbering system
  • Stroboscopic lamp
  • Shear slitting knives
  • Special size core chucks
  • Chill rollers
  • Delaminating/Re-laminating
  • Embossing unit
  • Electrical hoist
  • Hot melt coating
  • Hot/cold foil stamping
  • Corona treatment unit
  • Dust extractor
  • Waste trim extractor/remover
  • Waste chopper
  • Static eliminator
  • Web video inspectors
  • Wiseduct disposable ink trays
