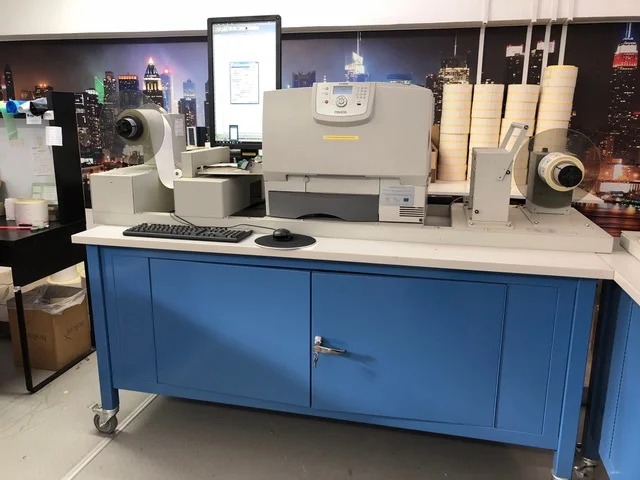

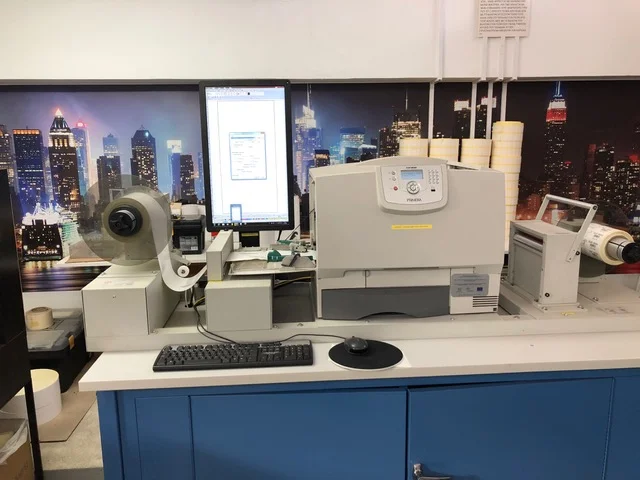

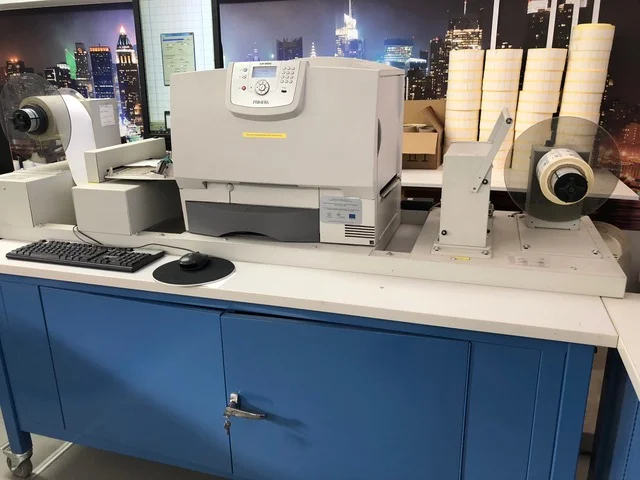

Primera CX1200 & FX1200

REF: BM00279

Primera CX1200e (European version of the machine)

Print Speed: 83mm/second, 5 meters/minute
Print Method: Color Laser with four separate laser engines (CMYK)
Display:  4-line, 160 x 64 pixel, backlit gray-scale display
Printer Processor: 800MHz / 133MHz / 256MB RAM (opt. 768MB)
Media Width: 216mm
Print Width: Up to 203 mm
Max. Label Length: Up to 610 mm (24”)
Media Length: Up to 500 Meters per 305mm outer diameter roll of self-adhesive label stock (includes face sheet, adhesive and liner)

Substrate Types: Self-adhesive label stock and laser approved films (Primera, MacTac)
Printing quality modes: 1200 dpi x 1200 dpi, 4800 Color Quality (2400 x 600 dpi)
Ink supplies: CMYK 4-color printing (Cyan, Magenta, Yellow, Black), 16,500+ extra high yield cartridges (rated according to ISO/IEC 19798 guidelines, equals approx. 4950 meters according to ISO/IEC 19798)
Software: PTPrint™ 9.0 RIP Software for Windows®, Pantone-approved color support, Easy to use graphical user interface

Input System:
Input roll maximum outer diameter: 305mm (12”)
Core inside diameter: 76mm (3”)
IntelliTorque Tension control system with automatic paper feed
Maximum input roll weight: 20.4 kg

Output System:
Output roll maximumouter diameter: 305mm (12”);
Core inside diameter: 76mm (3”);
IntelliTorque Tension control system
Maximum output roll weight: 20 kg

Operating System:
Windows® 7/10 (32-64 bit)

System Recommendations:
Intel® Pentium®-based PC or compatible, 2 GHz processor or higher, 2 GB RAM or higher,
50 GB or more free hard drive space, VGA video display of 1024x768 or higher,
Available 100/1000 Ethernet port

Dimensions:
Without bench: 193cmW x 56cmH x 56cmD
With bench: 193cmW x 144cmH x 76cmD

Weight:
Without bench: Approximately 116 kg
With bench: Approximately 207 kg

Operating Environment:
Temperature: 20 to 23°C
Humidity: 40 to 55% Relative Humidity,
Altitude: 0 - 2000 Meters

Power:
220-240 VAC, 50/60 Hz @ 3.5A

Certifications:
CSA, ICES Class A, BSMI Class A, VCCI Class A,
FCC Class A, UL 60950-1, IEC 60320-1, CE Class A,
CB IEC 60950-1, IEC 60825-1, GS (TÜV), SEMKO, UL
AR, CS, TÜV Rh, C-tick mark Class A

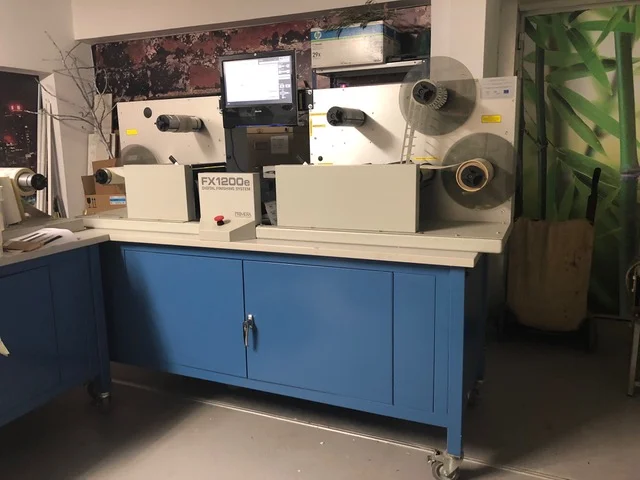

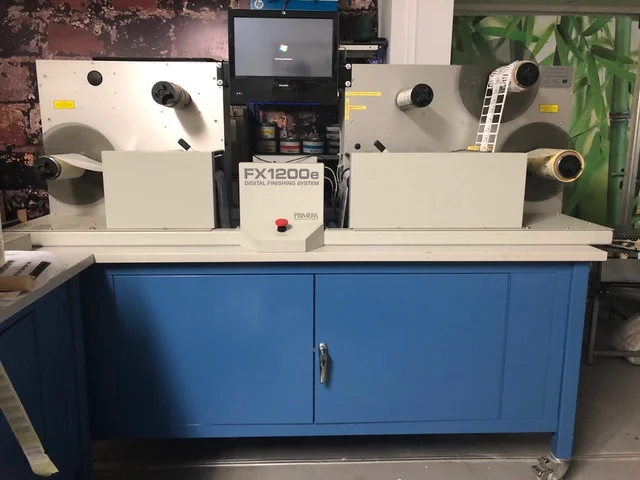

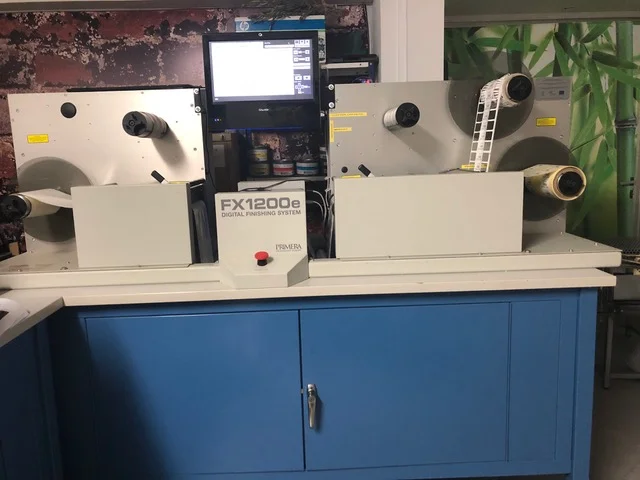

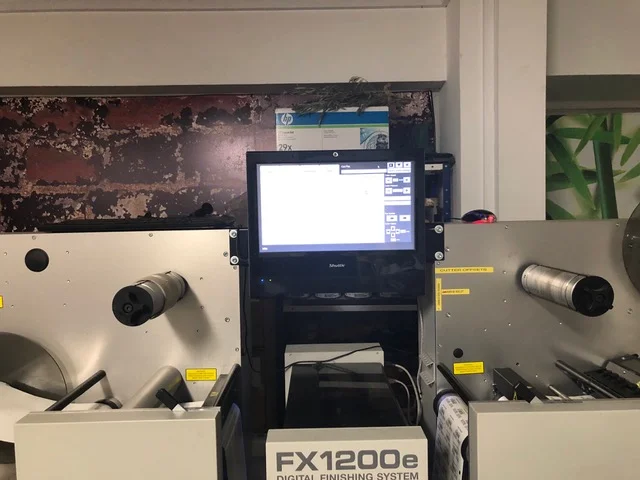

Primera FX1200e (European version of the machine)

Input roll max. diameter: 305mm
Output roll max. diameter: 305mm
Minimum web width: 152mm
Maximum web width: 216mm
Maximum die cutting width: 203mm
Minimum slitting width: 25mm
Minimum label length: 6mm
Maximum label length: 610mm
Throughput speed: Up to 102 mm per second or 6m per minute
Controls: 15.6” (diagonal measure) LCD touch screen, 16:9 wide panel, 1366 x 768 pixels; emergency stop switch
Number of cutting blades: 1 to 4
Number of slitting blades: 1 to 7
Cutting technology: Tungsten carbide pivoting knife(s)
Cut file protocol: HPGL
Optical sensing: Dual two-zone
Cut speed (max. diagonal): Up to 287cm per second when using four knife blades
Processor: Intel® Atom™ 330 1.6 GHz
Memory: 1 GB DDR2
On-board storage: 160GB SATA 2.5” HD
Data interfaces: USB 2.0, 10/100/Gigabit Ethernet, Wireless 802.11 b/g/n, USB memory stick
Dimensions: 198 cmW x 76 cmD x 142 cmH
Weight (estimated): 226 kg
Power requirements: 100-240VAC, 300 watts
Agency certifications: UL, UL-C, CE, FCC Class A
Options: Lamination Liner Waste Mandrel
