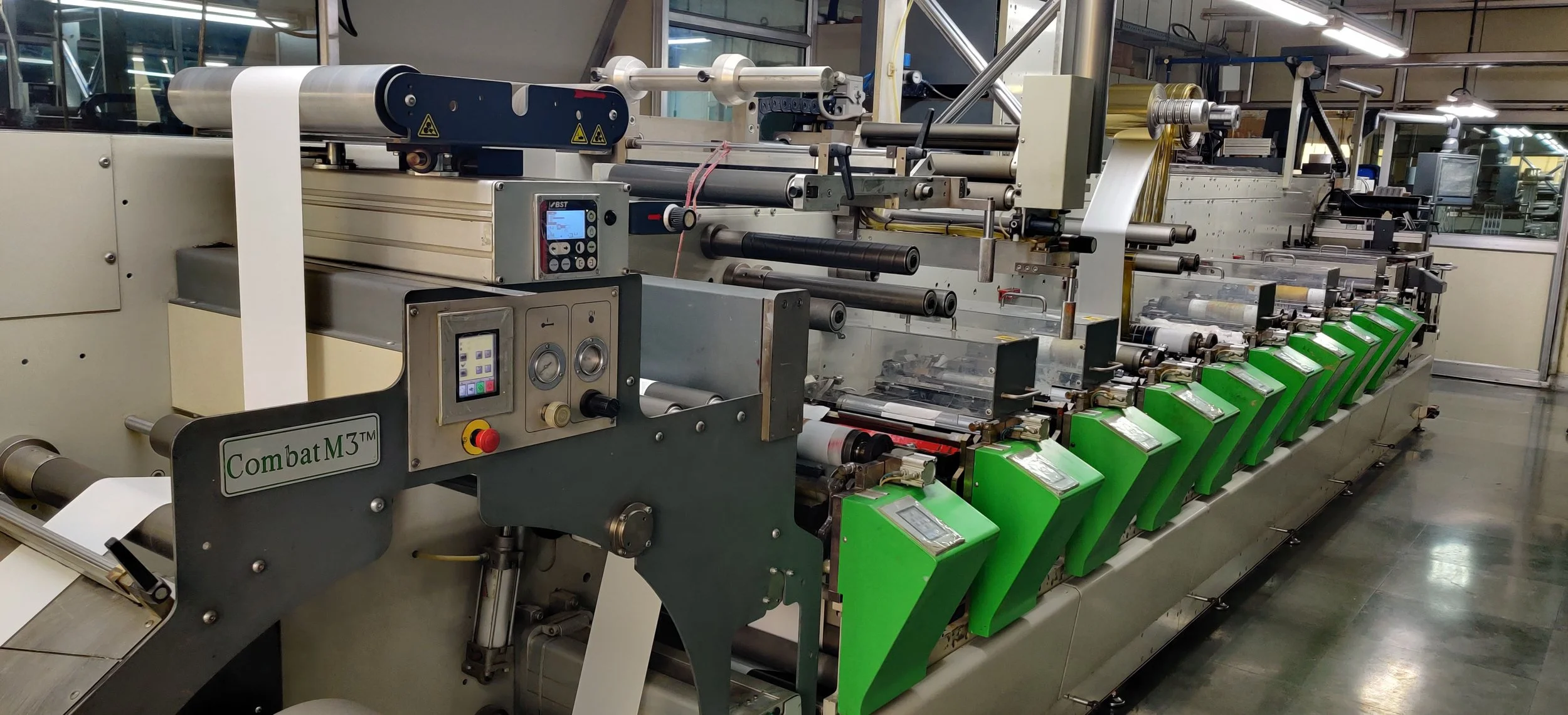

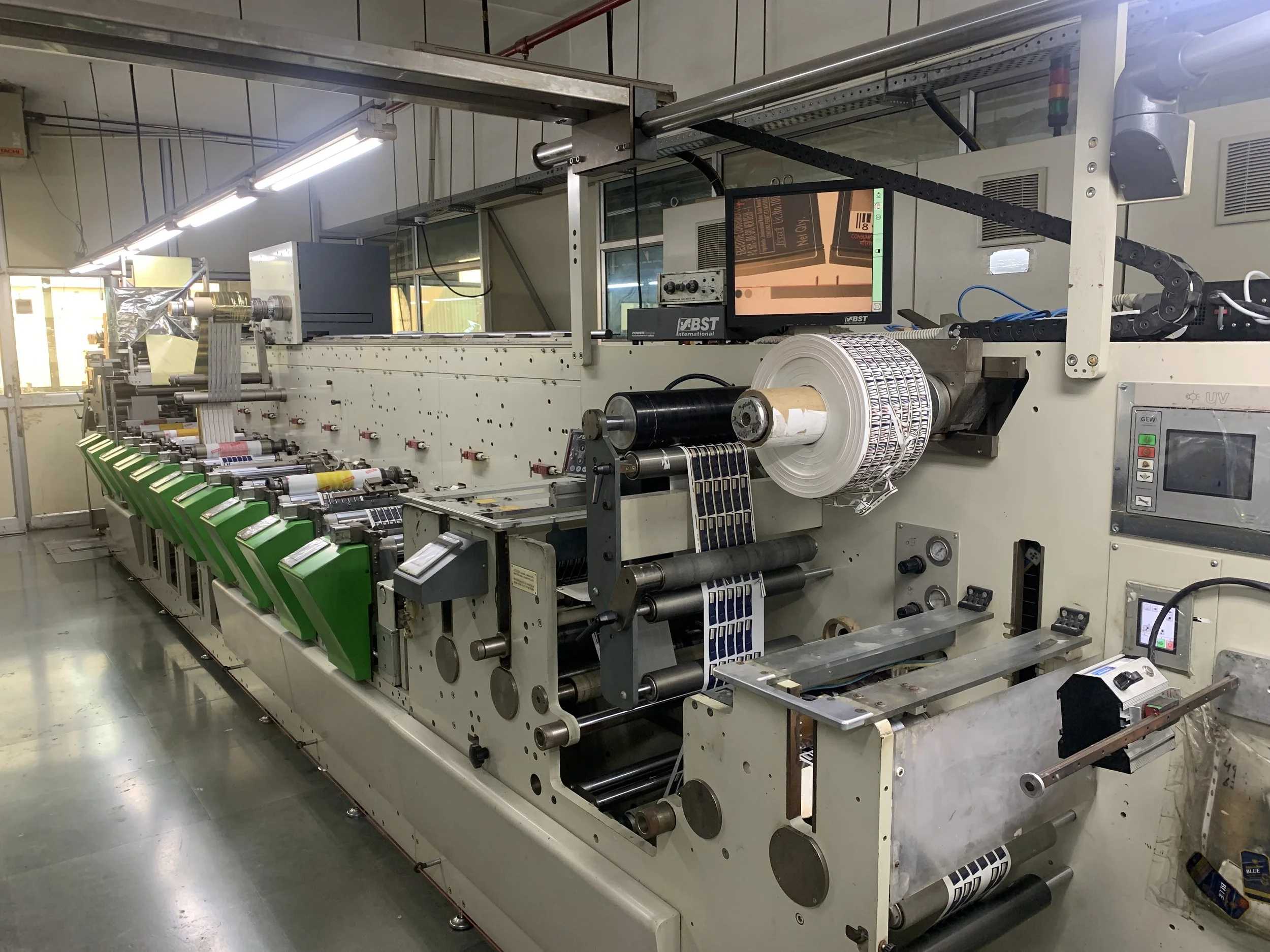

BOBST M3 370 10 colour
REF. BM00655
Location: India
Machine is in perfect running condition, fully servo driven
Pre-register, auto register
Matrix rewind, snowball, de-lam & re-lam, turnbar, cold foil kit
GEW E2C UV system
Machine is in perfect running condition
15 inks tray + meter roll + doctor blade assembly + trolley
Organiser with crane for mounting magnetic cylinder
Variety of print cylinder, magnetic cylinders, anilox are available
Machine Description:
Temperature control for un-limited substrates
Includes:
Front load unwinder with motorized roll lifting with Light™: servo driven unwind shaft
Max Unwind reel diameter: 1000mm
Web Guide: BST Automatic Web Guide
Video Inspection: BST Powerscope Video inspection with manual camera movement
1 x Infeed unit: Vario™ - Servo driven infeed (includes active load cell)
2 x Die-cutting stations (male-female die-cutting possible) - servo motorized
- Servo driven die-cutting units (1 servo motor per unit)
- Length register for die cutting unit
1 x Crush cutting slitting system including 3 blades
1 x Back slitting unit for silicon paper (half cut) includes 2 crush knives
1 x Outfeed Unit: Vario™ - Servo driven outfeed (includes active load cell)
1 x Organiser (includes crane to remove and store die-cutting tools)
3 x Web break detectors (2 for main web, 1 for matrix web)
3 x Antistatic bars
1 x Motorised rewinder
Max Rewind Diameter: 1000mm
1 x Motorised lateral register adjustment
Bobst Firenze mark-to-cylinder ARC register control
Automatic pre-register
Second pass register control
Touch screen panel on each printing and die-cutting station
Main touch screen panel (PC HMI)
Direct Internet Connection for remote SW and HW service and upgrades
Flexo Printing Unit Description
(1 servo motor for print cylinder, 1 servo motor for impression roller and ink train)
Includes:
Belt driven chilling drum
Servo Flower™ flexographic heads, with 2 servo motors
Short Web Path
Plexiglass cover for each printing unit
Photocells for Bobst Firenze mark-to-cylinder register control
Motorized lateral register adjustment
Sensor for automatic pre-register
New E2C E-bricks stepless 140 W/cm GEW UV dryers lamps (includes main touch screen panel)
Accessories Kit (which includes):
Printing accessories
- 1 set of rubber rollers per color + 5 additional pcs.
- 1 set of inktrays per color + 5 additional pcs.
- 1 set of doctorblade holders per color + 5 additional pcs.
1 x SnowBall
1 x Rail system for accessories
1 x Upper rail on the printing units
1 x Lamination and cold foil
1 x Combo laminator (unwinder and rewinder) and Cold Foil kit on rail
1 x Kelva CWC-S single side (contact cleaner)
