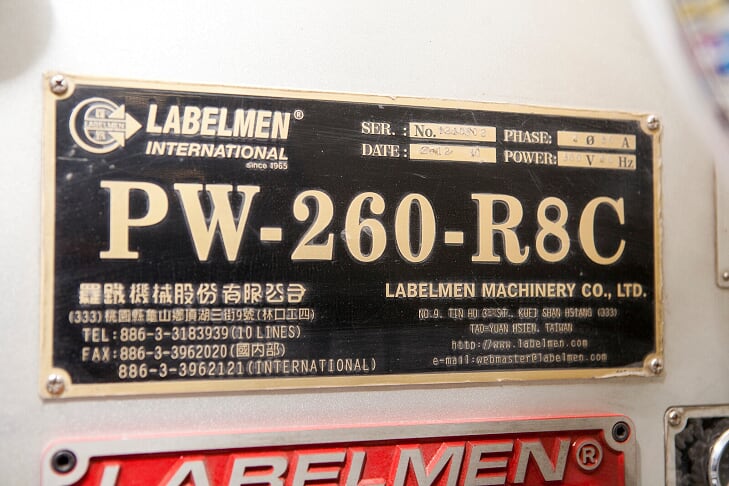

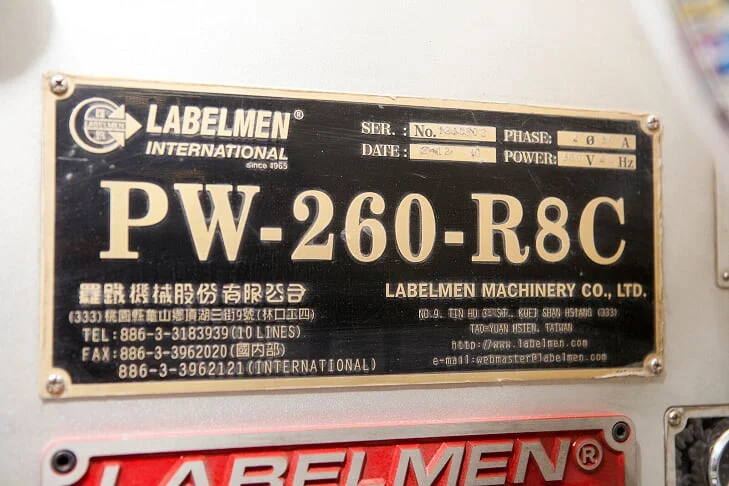

Labelmen PW 260 - 8 Colour Rotary Letterpress

REF: BM00371

This Machine Has Now Been Sold

Year: 2012
Max. web width: 260 mm
Max. printing width: 250 mm
Max. printing length: 460 mm
Min. printing length: 190 mm
Thickness: from 12u to 400u (depends on substrate type).
Max. printing speed: 100 m/min
Max. unwind reel dia.: 800 mm
Max. rewind reel dia.: 800 mm
Unwind unit with tension control
Automatic web guide system (FIFE, Germany)

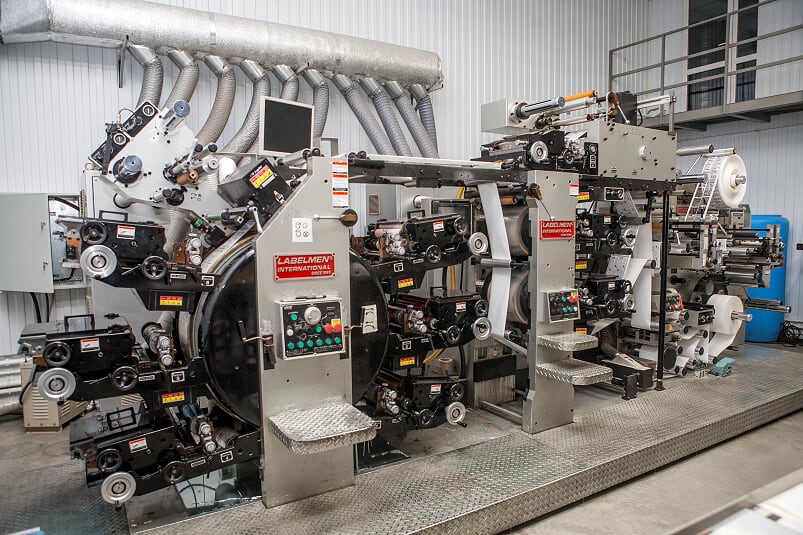

Central impression drum, 1000 mm (with central lubricant device and fast pre-registered impression drum system)
8 x UV Letterpress print units (with fast change plate cylinder system and length and side-lay register control)
Chilling cylinder station with water cooling (for unsupported polymer film press)
1 x Flexo varnish print unit (for flexographic press and UV coating)
9 x UV drying with air cooling (New UV lamps)
Semi-automatic wash up device
1 x Rotary die cut unit (for self-adhesive label)
Cold foil stamping unit
Cold lamination unit
UV lamination unit
Corona treater
Turn bar station for back side printing
Edge trimming device
Web cleaner
Rotary sheeting station (roll-to-sheet trimmer)
Carton box cutting system
Conveyor stacking machine
Rewind unit with tension control
2 antistatic devices
Web inspection camera
Library of tooling
Can be seen in operation
Checked and cleaned
2540 working hours
